■  With power supply voltage fluctuation compensation circuit, stable welding is possible.

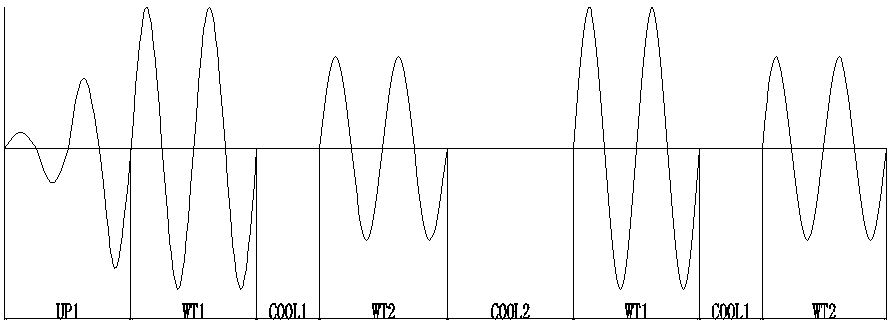

■  Equipped with a two-stage strong and weak discharge function, it can be applied to various workpieces.

■  The transformer has 7 adjustable gears and the minimum control unit of the controller is 1%. They can precisely control the output current.

Application Field

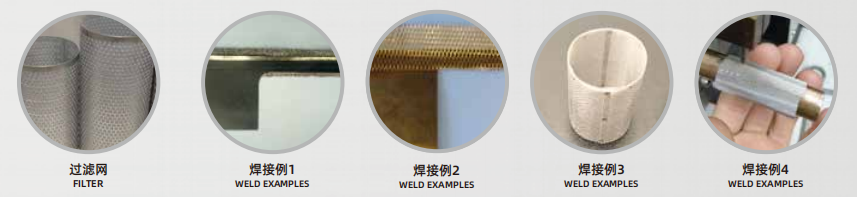

Suitable for seam welding of 0.1t~0.35t iron plate, nickel plate, SUS plate, etc.

Features

■ According to different needs, you can choose [1PU WELD], [CON WELD],[SW WELD],[2PU WELD] conduction mode.

■ 2 startup modes：According to different needs, you can choose [LS] or [LSST] start mode.

■ Welding current is automatically monitored, and the welding current qualified range can be preset to facilitate management.

   ■ With multiple counting functions：Needle replacement count, good product count and bad product count.

■ Through the RS485 port, the monitored current, conductive angle and good product count results can be obtained, which is convenient for production management and data storage.

■ With a variety of signal outputs, it is convenient to carry automated equipment.

Specification
